| 80PLUS® | Gold | |
| Cybenetics Efficiency Level | Platinum | |
| Cybenetics Noise Level | A- | |
| Form Factor | ATX/EPS | |

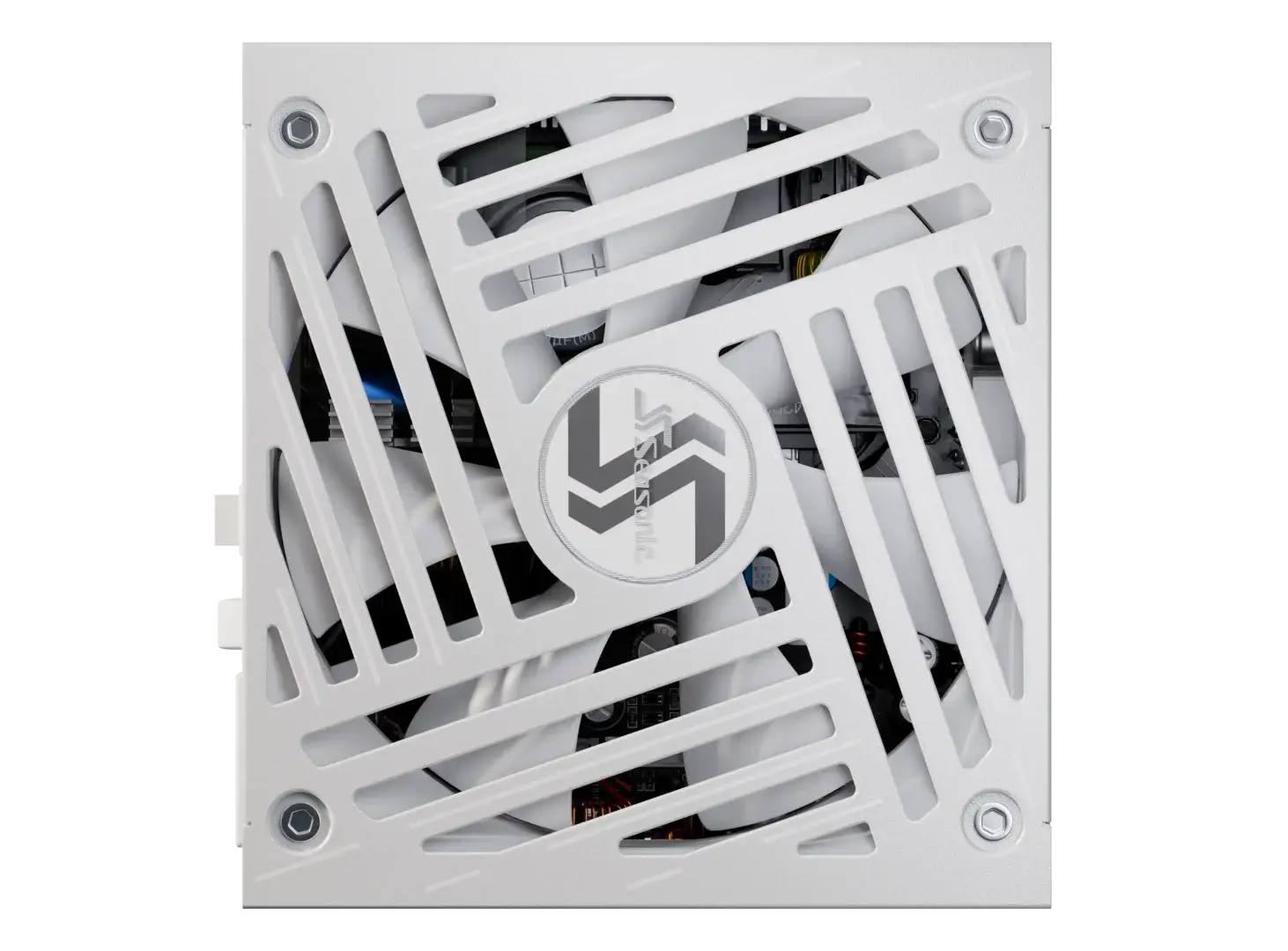

| Fan Information | Fan Size | 135 mm |
| Fan Control | Digital Hybrid Fan Control | |
| Fan Bearing | Fluid Dynamic Bearing | |
| Life Expectancy | 50,000 hours at 40 °C, 15 % – 65 % RH | |
| Cable Information | Modularity | Fully Modular |
| Cable type | Individual White Cables with Braided Pattern | |
| Electrical Features | Operating Temperature | 0 – 50 °C |
| MTBF @ 25 °C, excl. fan | 100,000 hours | |
| AC Input | Full Range | |
| Protection | OCP, OPP, OTP, OVP, SCP, UVP | |
| Safety and Environmental | Safety and EMC | BSMI, CB, CCC, CE, cTUVus, EAC, FCC, TUV |
| Environmental Compliance | Energy Star, ErP Lot 6, REACH, RoHS, WEEE | |
| Warranty | 10 Years | |
| Power Output | ||||||
|---|---|---|---|---|---|---|
| AC Input | 100 V – 240 V | |||||
| 11 – 5.5 A | ||||||
| 50 Hz – 60 Hz | ||||||
| DC Output | Rail | +3.3 V | +5 V | +12 V | -12 V | +5 VSB |
| Maximum Power | 20 A | 20 A | 70 A | 0.3 A | 3 A | |
| 100 W | 840 W | 3.6 W | 15 W | |||
| Total continuous power | 850 W | |||||
Specifications may change without prior notice.
610 mm
MB (24/20 pins)
1 connector
1 cable
700 mm
CPU (8/4 pins)
1 connector
2 cables
750 mm
PCIe (8/6 pins)
1 connector
3 cables
950 mm
SATA
4 connectors
2 cables
690 mm
Molex
3 connectors
1 cable
700 mm
12V-2×6 (12+4 Pins to 12+4 Pins)
1 connector
1 cable
Specifications may change without prior notice.
Recommended 12V-2×6 Cable Installation
- BOTH 12V-2×6 connectors of your 12V-2×6 cable must always be plugged into your power supply, ensuring they are FULLY INSERTED, CLICK-LOCKED, and TIGHT.
- DO NOT bend or apply force to the cable after it is plugged into place.
